2014 BROTHER TC-S2D 3-AXIS CNC DRILL TAP VERTICAL MACHINING CENTER
Drilling & Tapping Centers
2014 BROTHER TC-S2DN CNC Drill Tap Center: 14 HP, 10K RPM spindle, 14 position ATC, robust 551 lbs table capacity, precise XYZ travel. Includes CNC B00 controls & tool holders. Used, professional-grade.
X-Axis Travel 19.7"
Y-Axis Travel 15.7"
Z-Axis Travel 11.8"
Distance Between Table top and Spindle 7.1" to 18.9"
Work area size 23.6" x 15.7"
Max. Table load capacity 551 Lbs.
Spindle speeds 10 to 10,000 RPM
Speed during tapping 6,000 RPM
Spindle Taper BT-30
Spindle Motor 14 HP
Tool Storage Capacity 14
Cutting Feed Rate (X,Y) 04 to 394 IPM
Cutting Feed Rate (Z) 0.4-7.87 IPM
Rapid Traverse Rate 1969 IPM
Floor 81"x 87" x 112"H
Machine weight 5,300 lbs.

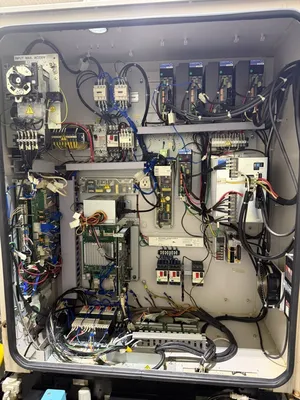

CNC B00 Controls
Misc tool holders
Coolant System
10,000 RPM Spindle
14 Position ATC
*4th axis drive and rotary can be added for an additional cost
