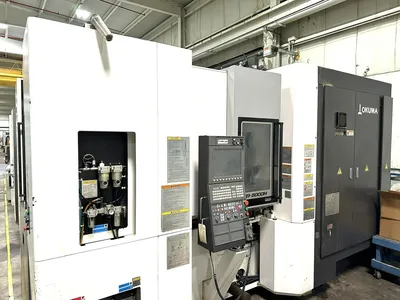

OKUMA MB-5000H CNC 5-AXIS HORIZONTAL MACHINING CENTER, NEW 2014
Horizontal Machining Centers (CNC)
OKUMA MB-5000H CNC 5-AXIS HORIZONTAL MACHINING CENTER, NEW 2014, 20" X 20" PALLETS, 40 TAPER, 15,000 RPM, FULL 5TH AXIS, HIGH PRESSURE COOLANT THRU, FROM AEROSPACE PLANT,
Tsudakoma rotary 5 AXIS table, 64 positiion ATC, OSP P300M cnc controls
Okuma MB-5000H
New - 2014
Okuma Space Center MB-5000H SPECIFICATIONS:
X-Axis (Column Right/Left)............29.92"
Y-Axis (Spindel Up/Down)............29.92"
Z-Axis (Table Front/Back)............29.92"
Spindle Center to Table Surface............1.97" to 31.89"
Spindle End to Table Center............5.31" to 35.24"
Table (Pallet) Size............19.69" x 19.69
Load Capacity - Maximum............1,000 Lbs.
Optional Index Positions............360,000
Spindle Speed - Maximum............15,000 RPM
Rapid Feedrate(X-/Y-/Z-xis)............2,362.20 ipm
Jog Feedrates (X-/Y-/Z-Axis)............0.04 to 2,362.20 ipm
Tool Magazine Capacity............64
Taper............Cat 40
Tool Diameter - Maximum............2.76"
Without Adjacent Tools............5.91"
Tool Length - Maximum............11.81"
Tool Weight - Maximum............22 Lbs.
No. of Pallets............2
Spindle Drive [Standard (Wide Range)]............40 HP
X-Axis Feed............6.13 HP
Y-Axis Feed............6.13 HP
Z-Axis Feed............6.13 HP
Hydraulic Power Unit............3 HP
Table Indexing............4.00 HP
Power Requirements............kVA 45 (15,000)
Voltage............200V VAC +/- 10%
Frequency............50/60 Hz
Machine Height............113.35"
Floor Space............102.56" x 181.50"
Machine Weight............27,500 Lbs.

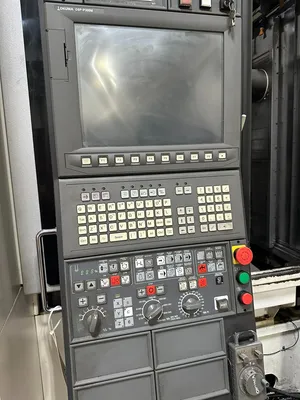

OKUMA OSP P300M CNC CONTROL
20" X 20" PALLETS
FULL 5TH AXIS TABLE ON TABLE

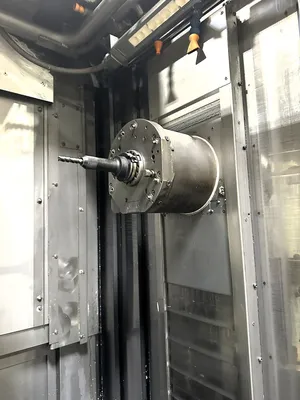

15,000 RPM SPINDLE
40 TAPER
64 POSITION TOOL CHANGER
MP HIGH PRESSURE COOLANT PUMP
THRU SPINDLE COOLANT
CHIP CONVERYOR

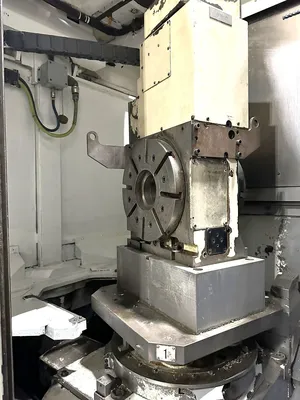

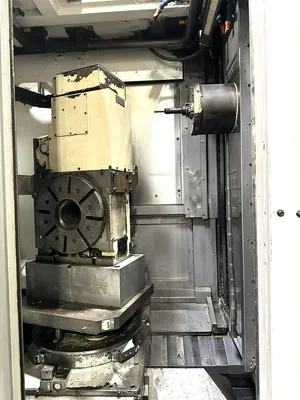

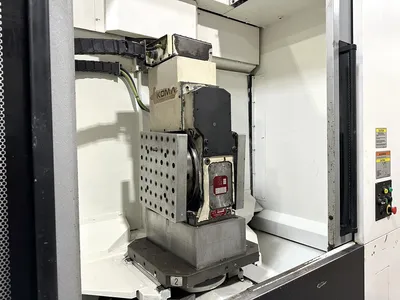

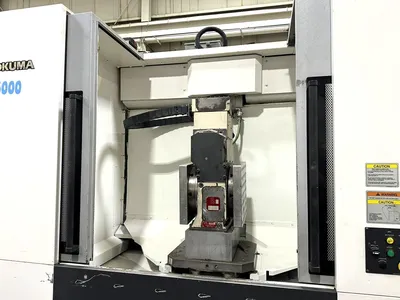

(1) TSUDAKOMA RBA-320K CNC Rotary Table w/ 12.5" Diameter 5TH AXIS Table. (only on one pallet)
MIST COLLECTOR
APPROX. 50 TOOL HOLDERS INCLUDED
Data Card 3/2015 options:
COLOR-DISPLAY
tool breakage
machine management
CUSTOM API
B-AXIS LIMIT
feed backlash function
graphic
inductosyn B
Animation
tool life management
spare T1.change
VERT. BACKLASH
ADD AXIS A, B, C
DNC-T1
COMP VARIABLES 200 SETS
helical cutting
One-direct position
SAFTY LOGIC SP.
skip function
change work coordinates
angle chamfer
6-AXIS CONTROL
POINT CALC
ADD PATTERN CYCLE
exact stop
mirror image
work coordinates 100
simple load monitor
3D simulation
synchronized taping
SUPER-HI-NC-RT
IN/OUT VARIABLE
cancel axis
sequence stop
GRAPHIC IMAP
TAPE STORAGE 320M
COORDINATE CALC
AERA MACHINING
COORDINATE CONV
INVERSE TIME FEED
PROGRAM LIMIT
PLAYBACK IMAP
HI-G
NC-OP MONITOR
SCHEDULE UPDATE
MANUAL GAUGING
I/M SWITCH
REV/MIN FEED
ANGLE 1/10000
system variables
add math function
sub programs
HIGH SPEED INTERPOLATION
NURBS COMMAND
SUPER HI-NC
LOW SVP
xyz self tun
PL speed clamp
INDUCTOSYN ADJ
DOOR INTERLOCKS
BALL SCREW COOLING
AXIS ACTIVE STOP
CHIP CONVEYOR
OIL AIR DAIDO
tool data 999
cycle time reduction
coolant high pressure
oil hole
thru spindle tool
air blast THRU SPINDLE
shower wash
