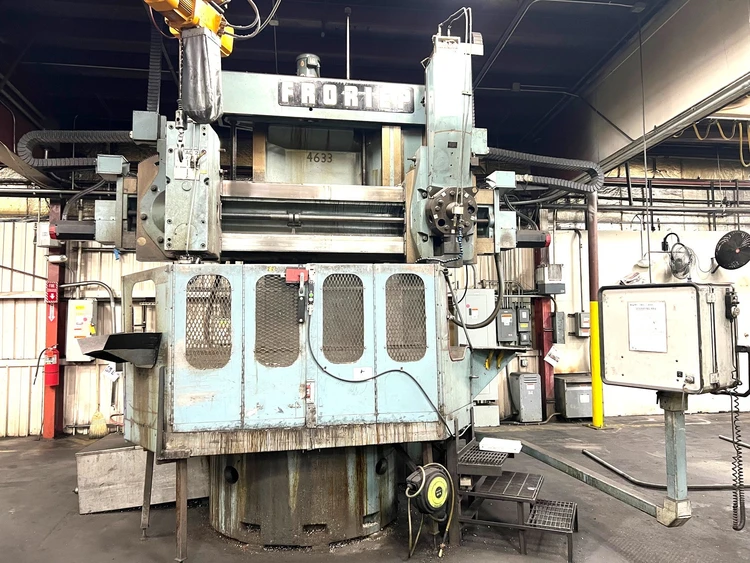

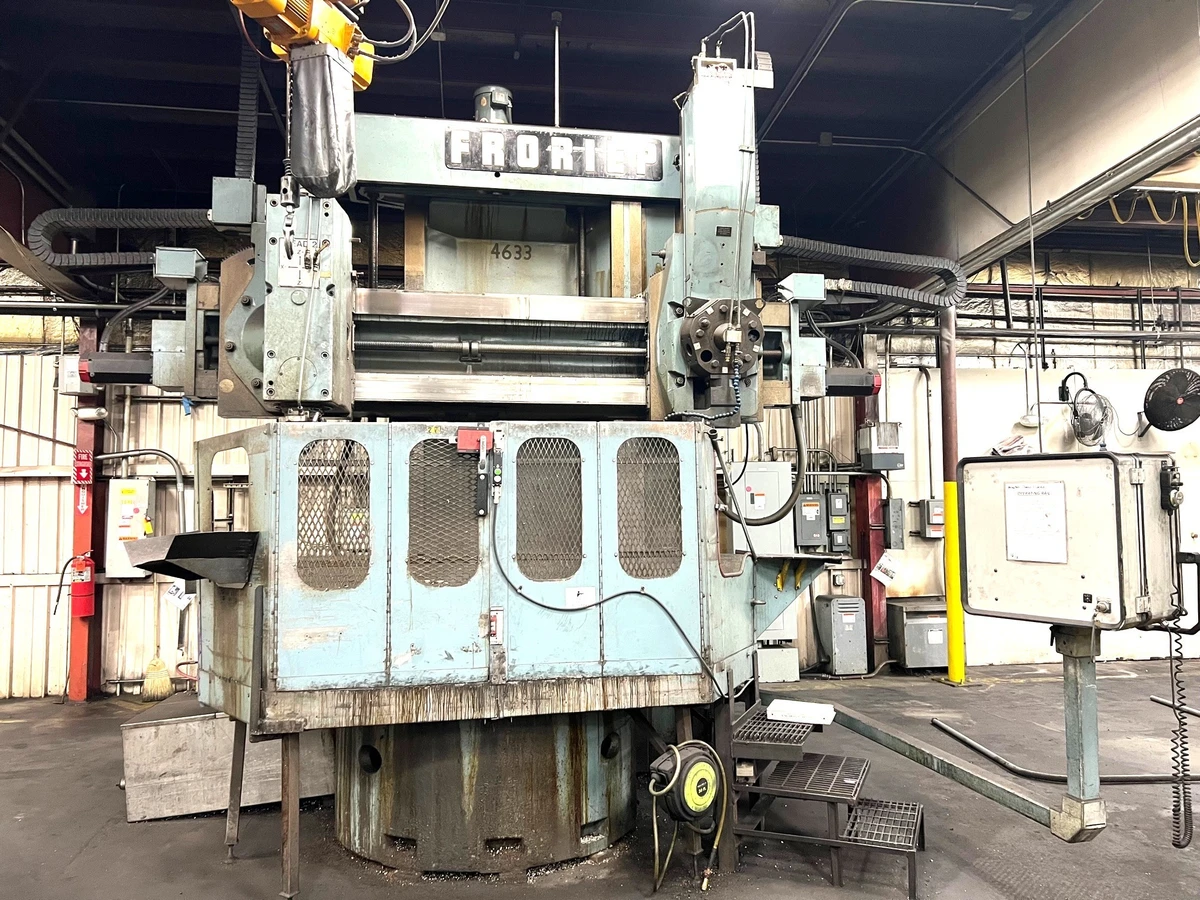

63" Froriep 4-Axis CNC Vertical Boring Mill w/ Ram and Turret Head
Vertical Boring Mills (incld VTL)
63" Froriep 4-Axis CNC Vertical Boring Mill w/ Ram and Turret Head, 63" Table, face plate type chuck, 71" swing, Fanuc 18TT CNC, 50 HP Drive, Retrofit 2006
63"x71" Froriep Model KE-Super KE16 63" Turret Lathe, 4-AXis CNC Retrofit 2006
Diameter of Chuck: 63" (1,600.2 mm)
Max Swing: 71" (1,803.4 mm)
Height Under Rail: 47" (1393.8 mm)
Table Speed: 2.5 - 125 RPM
Feed Rates: .003 - - .20 (12)
Main Motor Drive: 50HP
¯
Complete With:
Turret Head 2-Axis CNC
Ram Head 2-Axis CNC
63" Table with Jaws
Approximate Dimensions: 132"(LR) X 127"(FB) X 144"(H)
FANUC 18TT CNC
TURRET AND RAM HEAD 4-AXIS
63" FACE PLATE TYPE CHUCK
